CUBE FOLD HYBRID 500 eBIKE 2025 SAGEBRUSHGREEN´ N ´PRISM
Product Details - Cube Fold Hybrid 500 Ebike 2025 Sagebrushgreen´ N ´prism
Product Details - Cube Fold Hybrid 500 Ebike 2025 Sagebrushgreen´ N ´prism
eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.
Your eBike will be delivered built, set up and updated in two boxes.
Minimum personal assembly is required.
The Fold Hybrid from CUBE is a two-wheeled partner that can do it all - and can be folded up for easy storage and transportation.
The drive is provided by the Bosch Active Plus motor, which is powered by a 500 Wh battery as standard.
Key Features Cube Fold Hybrid 500 Folding eBike 2025
- Lightweight Hydroformed Alloy Frame: Durable and foldable for easy storage and transport.
- Bosch Active Plus Motor: Smooth, reliable pedal-assist for effortless riding.
- 500Wh Battery: Ample power for extended trips and commutes.
- Shimano Tiagra 10-Speed Gears: Reliable and simple to use, making every ride easy.
- Space-Saving Design: Compact folding capability for urban living and travel.
Full Specification

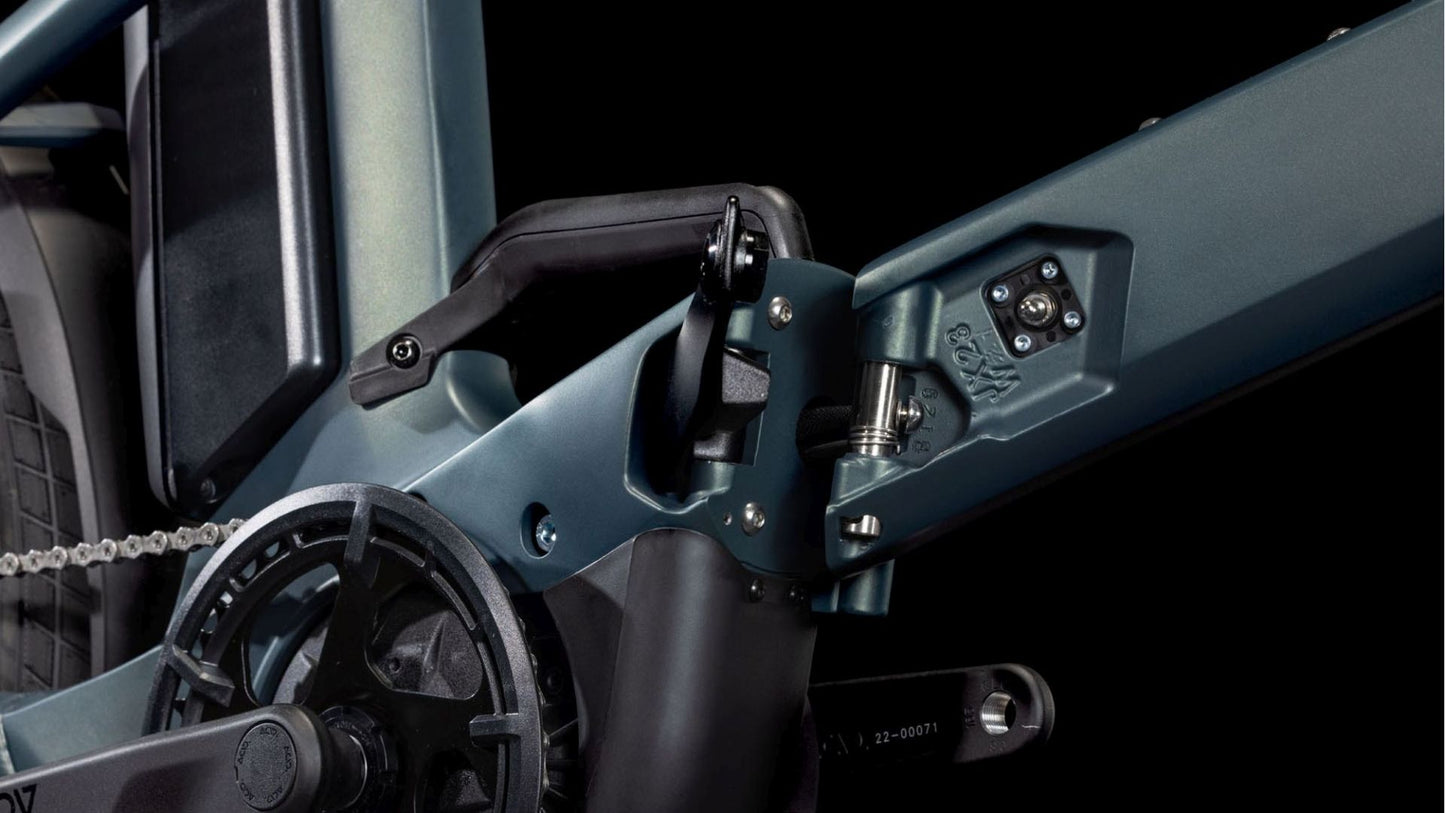

- Frame: Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Front-Carrier Ready, Slider Dropout, Integrated Folding Technology, Carrying Handlebar
- Fork: Cube Aluminium Rigid Fork, 20"
- Motor: Bosch Drive Unit Active Plus Generation 3 (65Nm) Cruise (250Watt)
- Battery: Bosch PowerPack 500
- Controller: Bosch Purion
- Charger: Bosch 2A
- Shifters: Shimano Tiagra SL-4700
- Crankset: ACID Trekking Hybrid, 42T with Chainguard
- Cassette: Shimano CS-HG500, 11-34T
- Chain: KMC X10
- Pedals: Cube Folding Pedal, Aluminium
- Rims: CUBE EX30, 32H, Disc, Tubeless Ready
- Front Hub: Shimano HB-QC300, QR, Centerlock
- Rear Hub: Shimano FH-QC300-HM, QR, Centerlock
- Tyres: Schwalbe Super Moto-X, Double Defense, 62-406
- Brakes: Shimano BR-MT200, Hydr. Disc Brake (180/180)
- Handlebars: CUBE Comfort Trail Bar, 680mm, 25,4mm
- Grips: ACID Travel Comfort
- Headset: ACROS AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
- Stem: CUBE Folding Stem, Adjustable Length, 25,4mm Clamp
- Saddle: Natural Fit Sequence
- Seatpost: Satori Sorata 34,9mm, 280mm - 440mm telescoping seatpost
- Front light: Acid PRO-E 60, 12V, DC
- Rear light: ACID Mudguard Rear Light PRO-E, 12V, DC
- Rack: ACID 20" Semi-Integrated Carrier, ACID RILink Adapter Compatible
- Other details: Mud guard, stand, bell
- Weight: 24,5 kg
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
Size Guide
Size Guide

How we Build & Pack Your Bike
How we Build & Pack Your Bike
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
