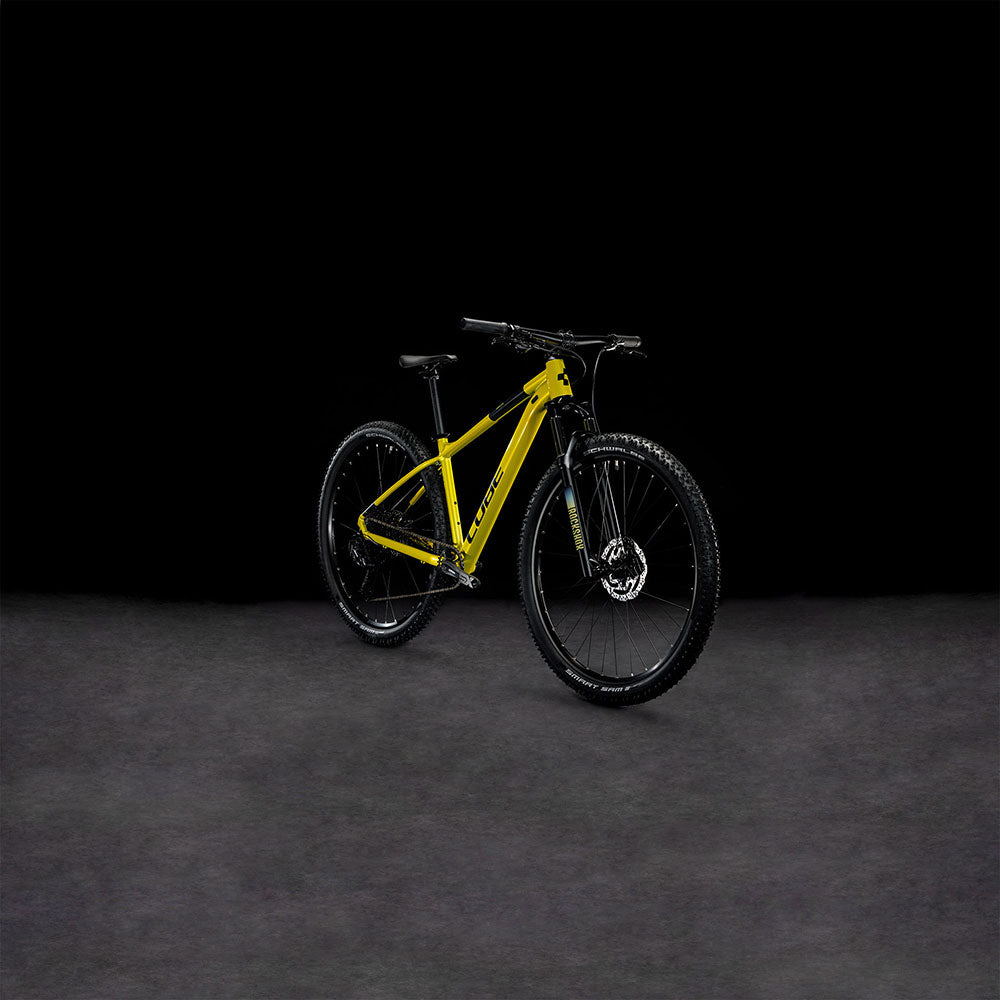

CUBE ANALOG HARDTAIL MTB BIKE 2023 FLASHLIME´N´BLACK

A hardtail is a versatile beast, so it helps to have the right kit to get the most out of that versatility.

That's why, with the new Analog, Cube began by choosing Sram's SX Eagle 1x12 transmission. With its huge range, ease of use and reliable performance, it's the go-to for many keen riders.

Open 360° view

Frame sizes XS (14") and S (16") come with 27.5" wheels, sizes M (18"), L (20"), XL (22") and XXL (24") are 29ers.

Key Features

• Rockshox Judy Silver suspension fork: For comfort and control.
• Disc Brakes: For reliable stopping in all conditions.
• Sram Eagle SX 12 speed: To get you up the steepest of hills.

Full specification

• Frame: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
• Fork: RockShox Judy Silver TK Coil, 100mm, Lockout
• Gear Shifters: Sram SX Eagle™ Trigger

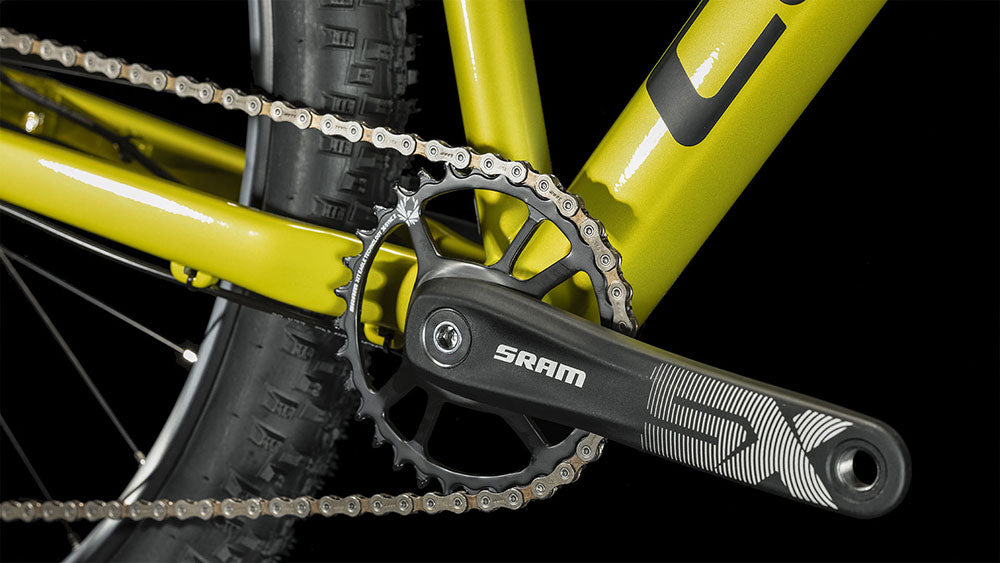

• Chainset: Sram SX Eagle™ Powerspline, 32T, 175mm
• Chainrings: 32T
• Rear Cassette: Sram PG-1210 Eagle™, 11-50T
• Chain: Sram SX Eagle™
• Front Derailleur: N/A
• Rear Derailleur: Sram SX Eagle™, 12-Speed
• Bottom Bracket: SRAM Power Spline | 73mm BSA
• Pedals: ACID PP MTB
• Rims: CUBE ZX20, 32H, Disc
• Front Hub: Shimano HB-TX505, QR, Centerlock
• Rear Hub: Shimano FH-TX505, QR, Centerlock
• Front Tyre: Schwalbe Smart Sam, Active, 2.25
• Rear Tyre: Schwalbe Smart Sam, Active, 2.25
• Brakes: Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (180/160)
• Handlebars: CUBE Rise Trail Bar, 680mm
• Grips: ACID React
• Headset: CUBE FPH868, Semi-Integrated
• Stem: CUBE Performance Stem SLX, 31.8mm
• Saddle: Natural Fit Venec Lite
• Seatpost: CUBE Performance Post, 27.2mm
• Weight: 13.9Kg

Details

Completely revised, the brand-new Analog's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with the kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube and tapered head tube for more confident handling, cables run internally for reduced maintenance, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. The SizeSplit system has an expanded range too, so however tall you are there'll be an Analog that fits perfectly. And, as your skills increase, there's scope to fit a dropper post upgrade.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Pedals - Ensure pedals are still tight and correctly fitted.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Pedals - Ensure pedals are still tight and correctly fitted.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
