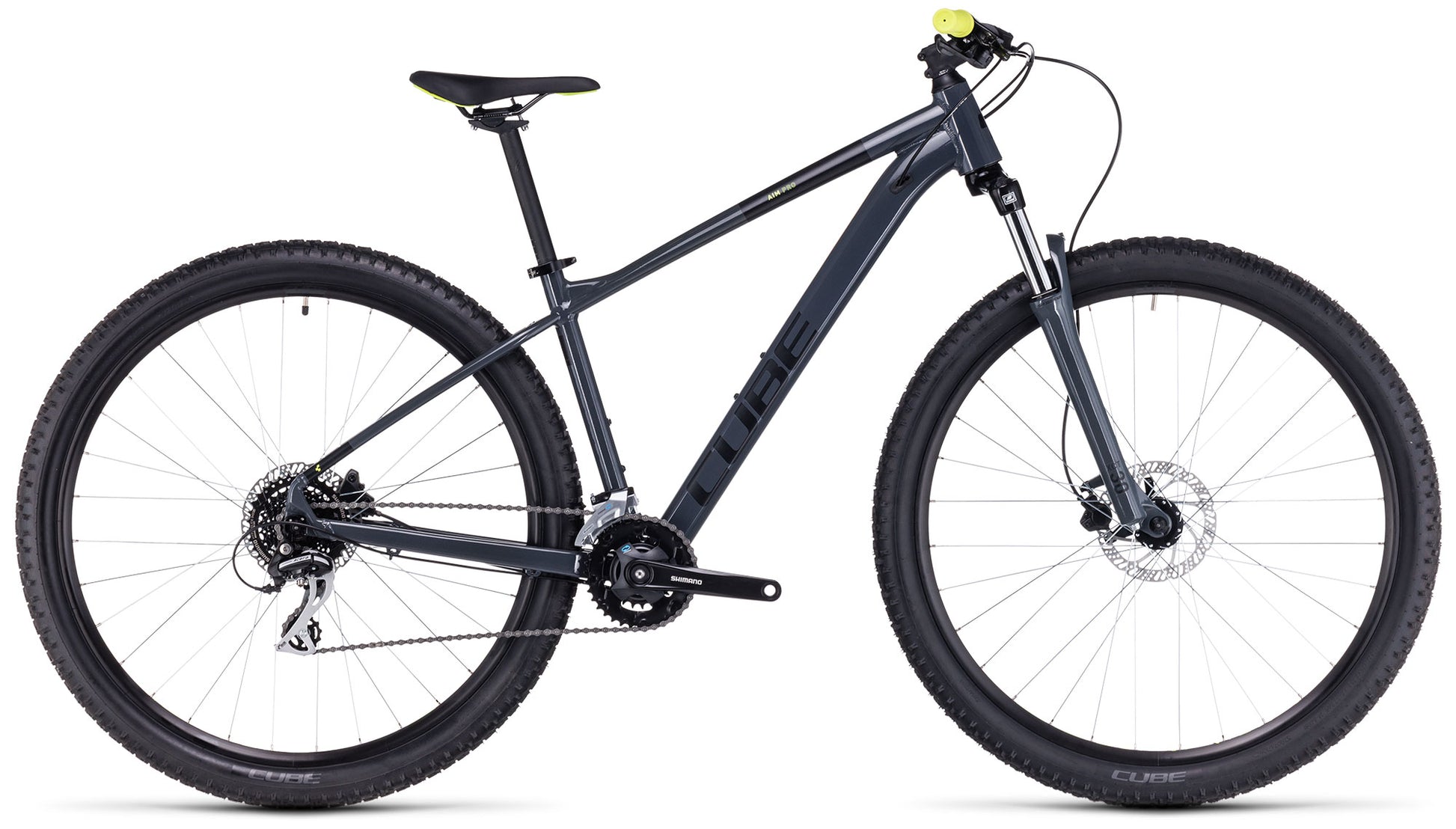

CUBE AIM PRO HARDTAIL MTB BIKE 2023 GREY' N 'FLASH YELLOW
Product Details - Cube Aim Pro Hardtail Mtb Bike 2023 Grey' N 'flash Yellow
Product Details - Cube Aim Pro Hardtail Mtb Bike 2023 Grey' N 'flash Yellow
If you've got an off-road itch that needs scratching, the new Aim Pro could be the relief you've been looking for.
With its grippy 2.25in tyres and 100mm of suspension fork travel, courtesy of Suntour, it's got what you need to keep riding where the road ends.
Wide-ranging Shimano 2x8 gears will help you see off the steepest climbs, and strong hydraulic disc brakes put you in control on the descents. SizeSplit makes it easy to find the perfect fit, and the new tapered head tube frame is even ready to accept a dropper post upgrade.
Frame sizes XS (14") and S (16") come with 27.5" wheels, sizes M (18"), L (20"), XL (22") and XXL (24") are 29ers.
Key Features
- SR Suntour XCT, 100mm suspension fork: For comfort and control.
- Disc brakes: For reliable stopping in all conditions.
- Shimano 8 speed gears: To get you up the steepest of hills.
Full specification

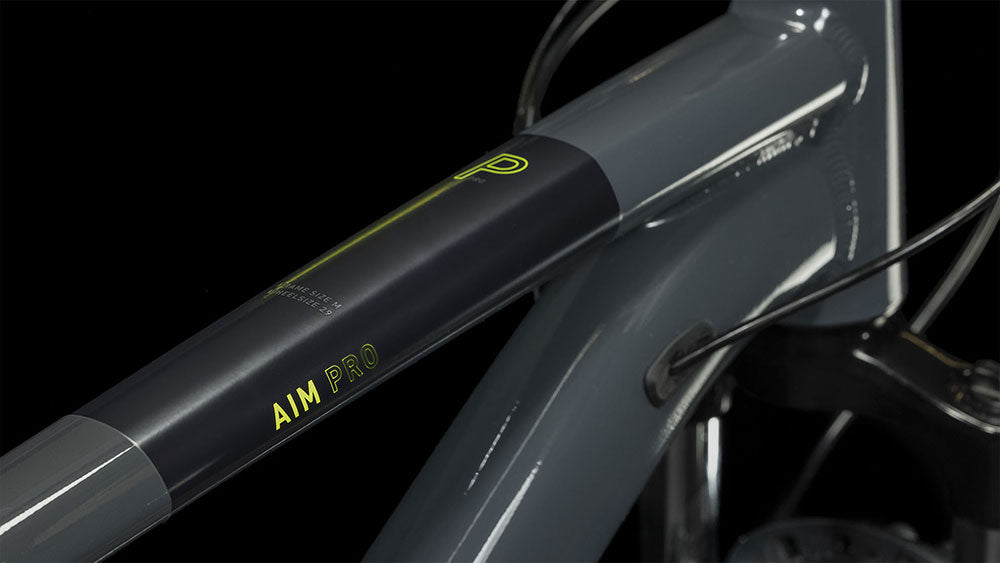

- Frame: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
- Fork: Cube XCT Disc, 100mm
- Shifters: Shimano SL-M315, Rapidfire-Plus
- Chainset: Shimano FC-M315, 36x22T, 170mm
- Cassette: Shimano CS-HG31, 11-34T
- Chain: KMC Z8.3
- Front Derailleur: Shimano FD-M315, Top Swing, 31.8mm Clamp
- Rear Derailleur: Shimano RD-M3020, 8-Speed
- Bottom Bracket: Feimin FP-B902N, 73mm BSA
- Pedals: CUBE PP MTB
- Rims: CUBE ZX20, 32H, Disc
- Front Hub: Shimano DH-3D32, Hub Dynamo, QR
- Rear Hub: CUBE Alloy Light, QR, 6-Bolt
- Tyres: CUBE IMPAC Smartpac, 2.25
- Brakes: Tektro HD-M275 / TKD-150, Hydr. Disc Brake (160/160)
- Handlebars: CUBE Rise Trail Bar, 680mm
- Grips: CUBE Acid React
- Headset: CUBE FPH863, Semi-Integrated
- Stem: CUBE Performance Stem SL, 31.8mm
- Saddle: Natural Fit Venec Lite
- Seatpost: CUBE Performance Post, 27.2mm
- Weight: 14.7 kg
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Size Guide
Size Guide

How we Build & Pack Your Bike
How we Build & Pack Your Bike
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Pedals - Ensure pedals are still tight and correctly fitted.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Pedals - Ensure pedals are still tight and correctly fitted.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
