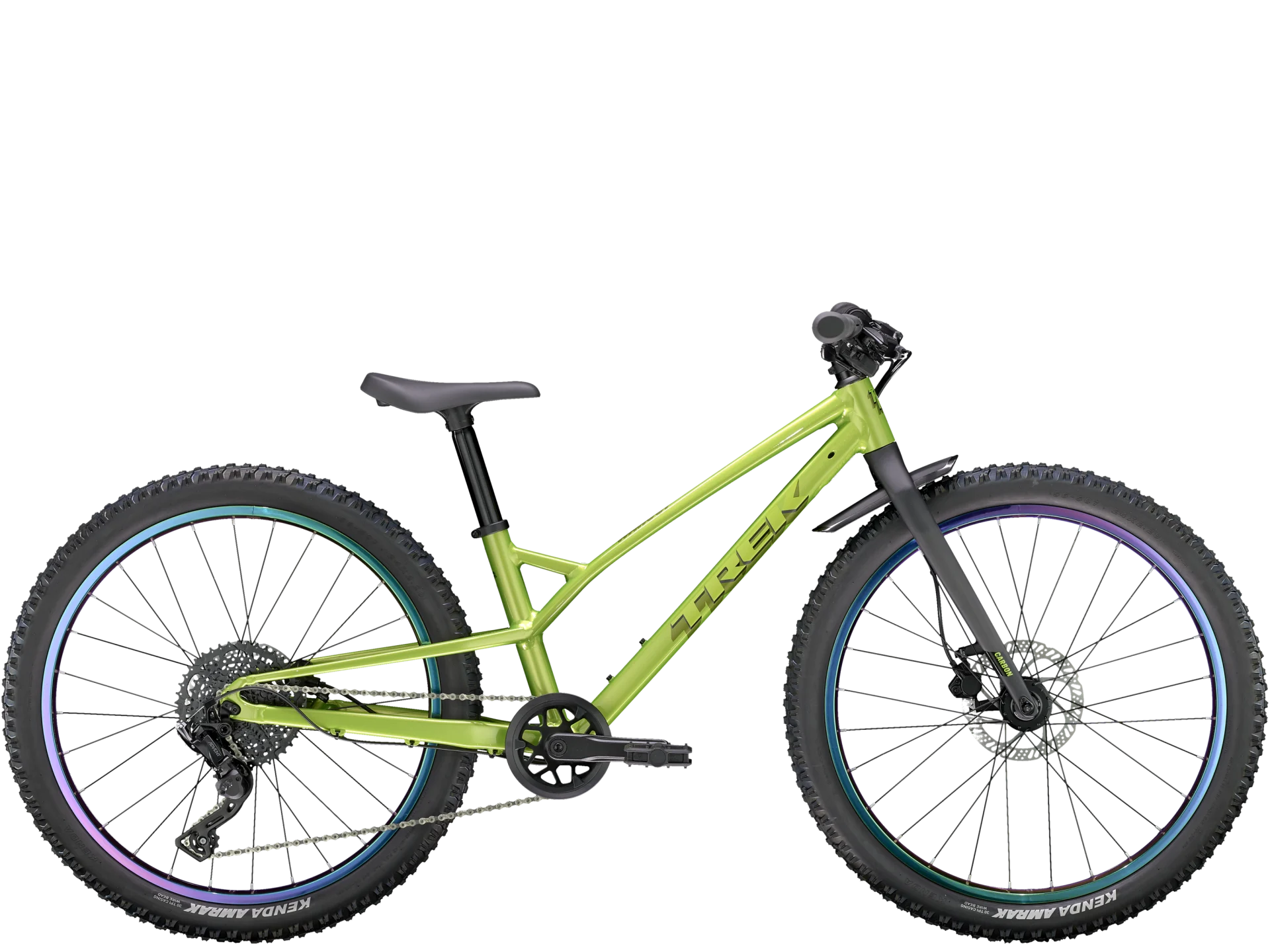

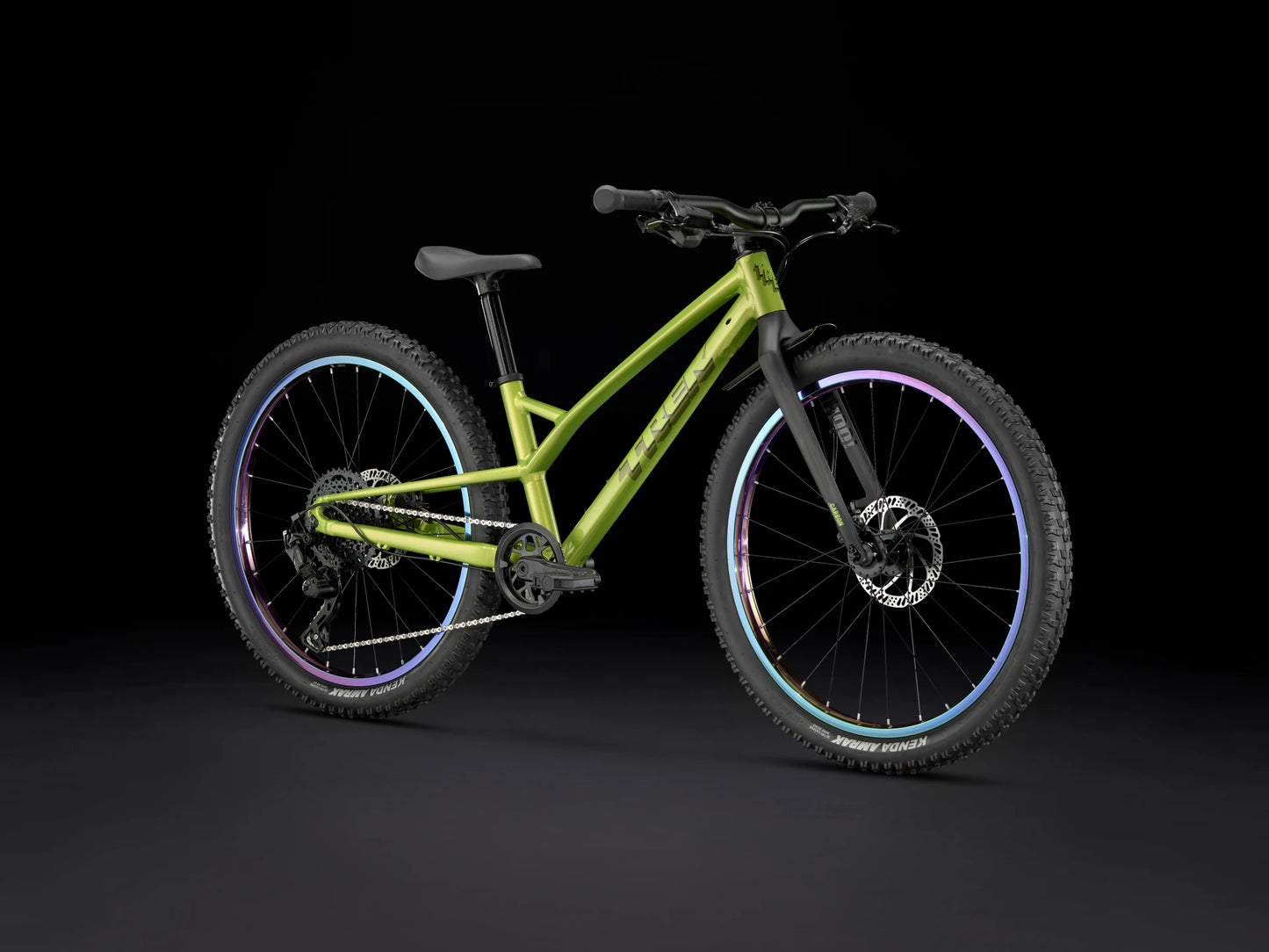

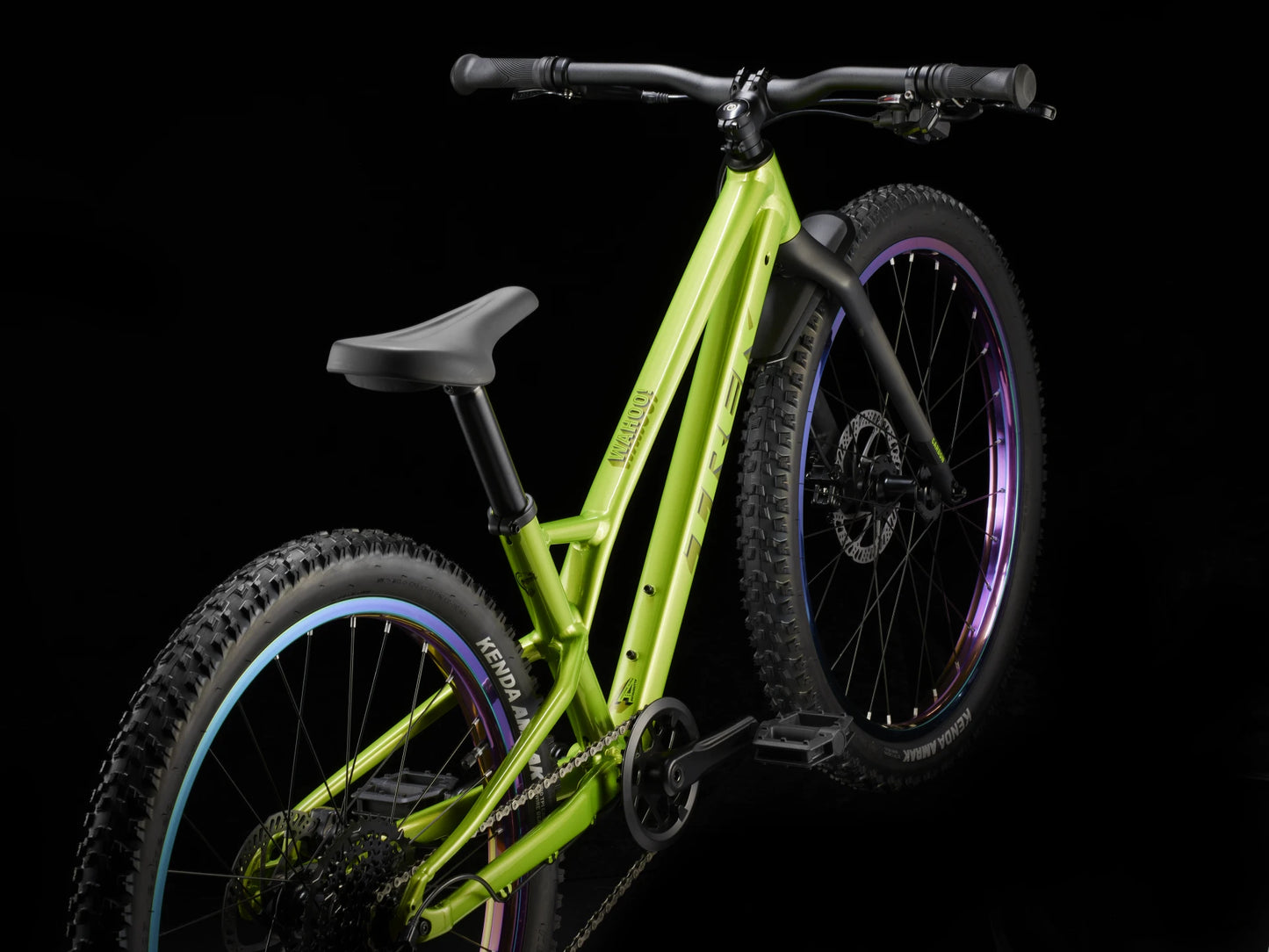

Wahoo 24 Trail is a light and tough kids’ bike that’s ready to roll off-road. Its sturdy aluminium frame is easy to manoeuvre as they weave their way down the trail, but rugged enough to handle the tough stuff. A 9-speed 1x drivetrain gives them plenty of gears for pedalling up steep trails and disc brakes provide next-level stopping power to slow their roll or help them stop on a sixpence on the way back down. Perfect for riders between 130 and 150 cm tall.

Key Features

• Hydraulic Disc Brakes: Reliable brakes to keep your child in control in all weather conditions.

• Aluminium Frame: Lightweight and easy to manoeuvre for children.
• 9 Microshift Gears: Perfect for all terrain, with the simplicity of a single shifter.

Full Specification

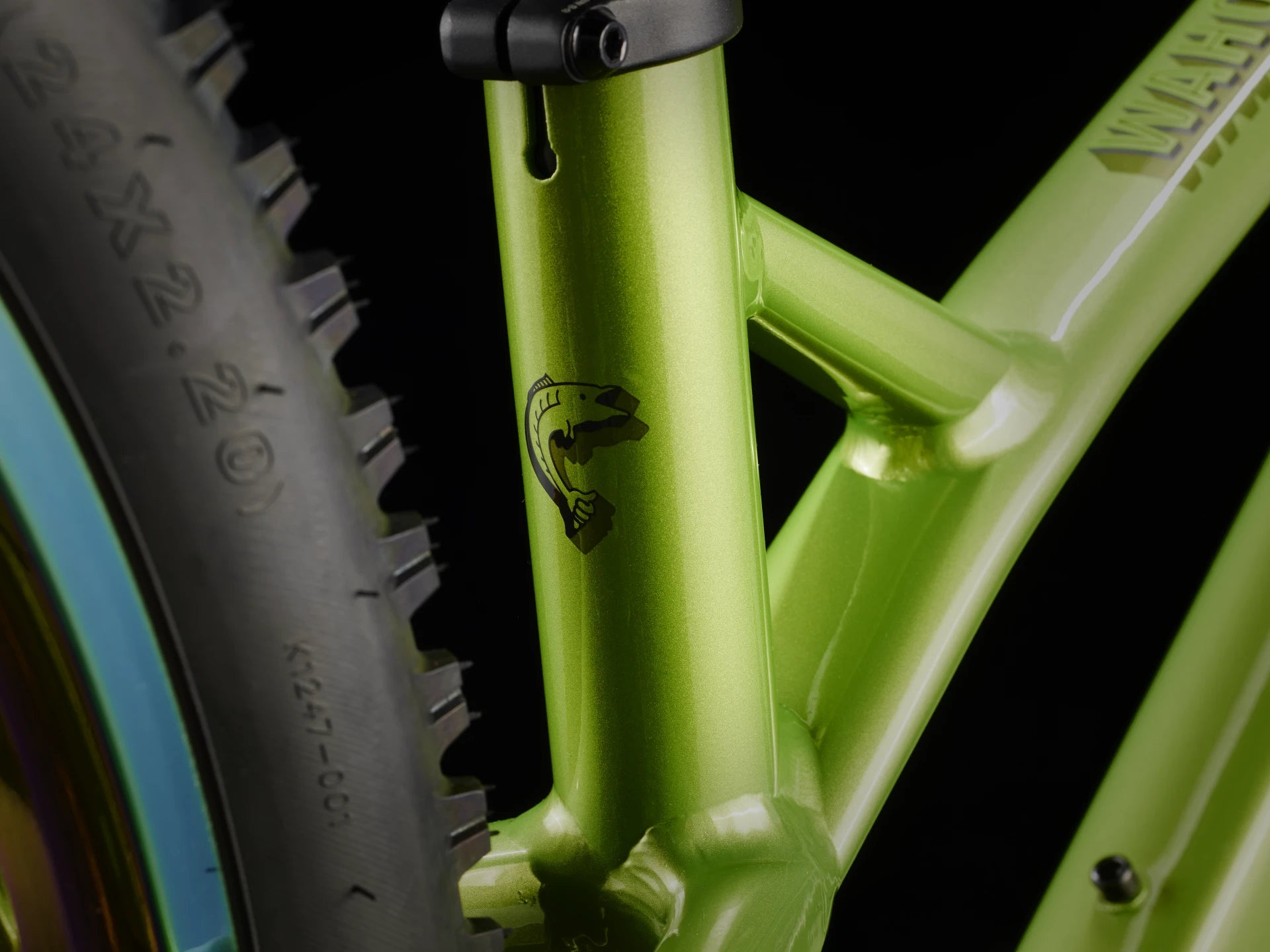

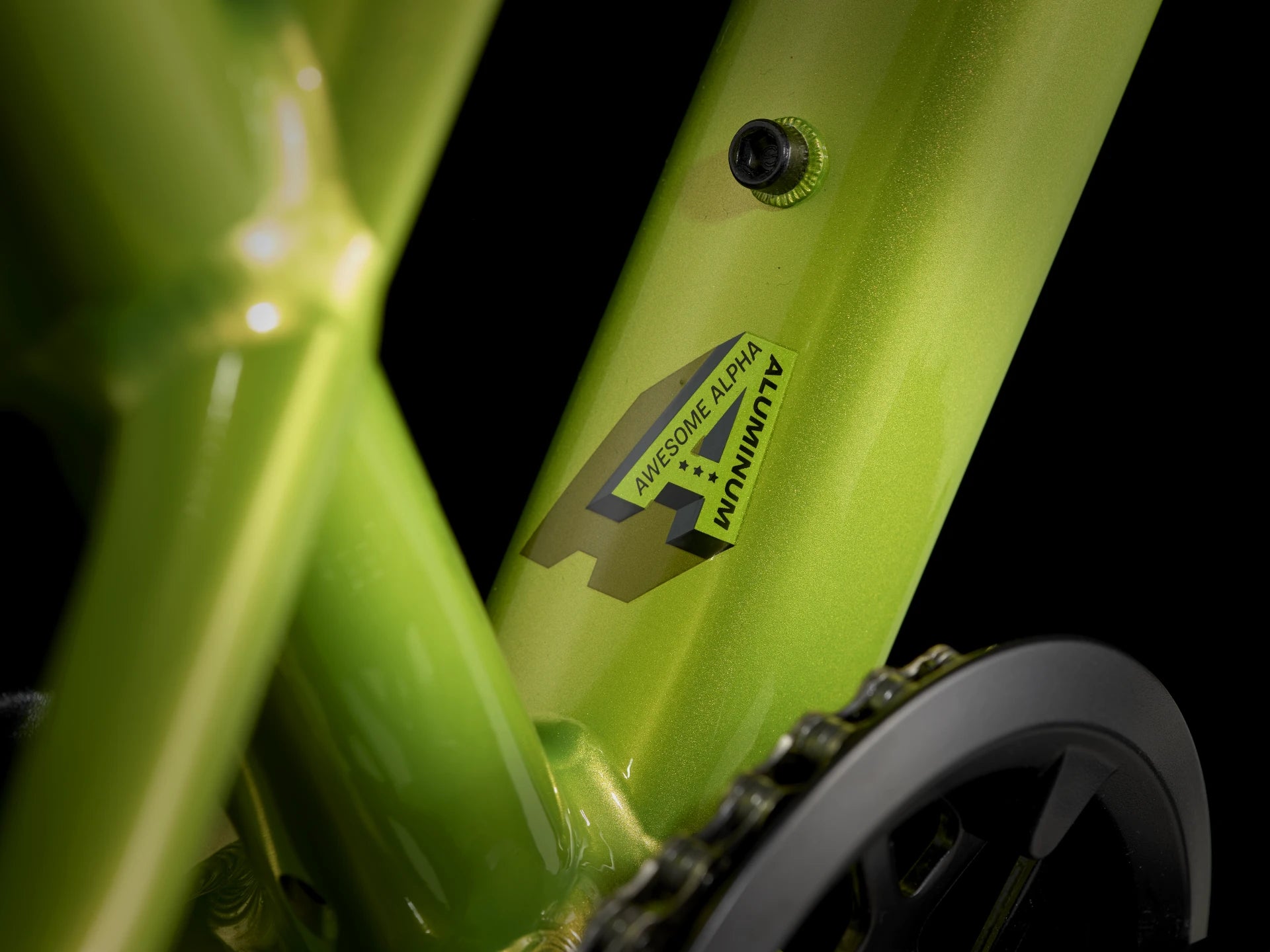

• Frame: Alpha Silver aluminium, 24
• Fork: Wahoo 24", post-mount disc brake, ThruSkew 5 mm QR
• Gear Shifters: microSHIFT Advent Quick Trigger Pro SL-M6295, 9-speed
• Chainset: Alloy

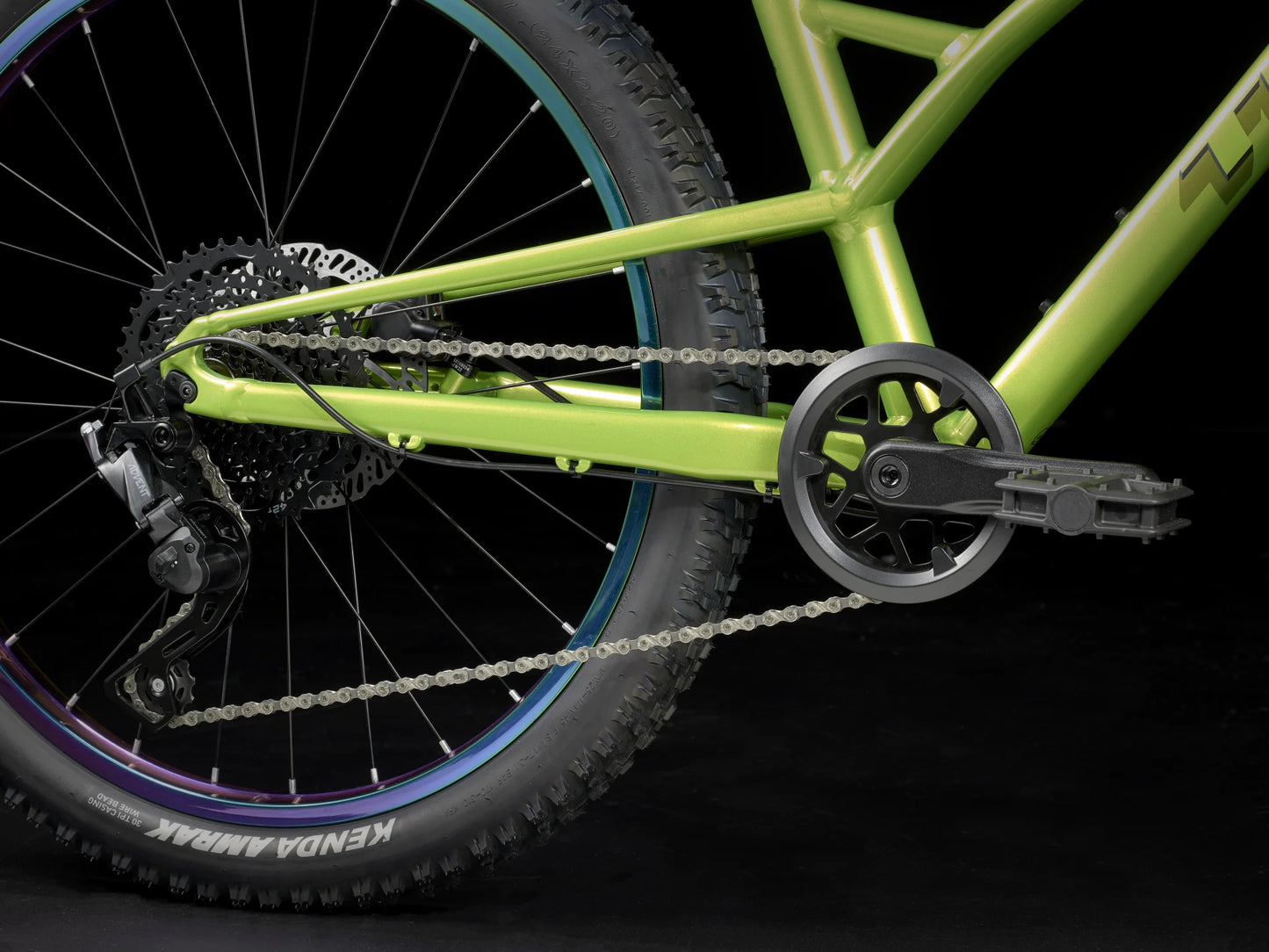

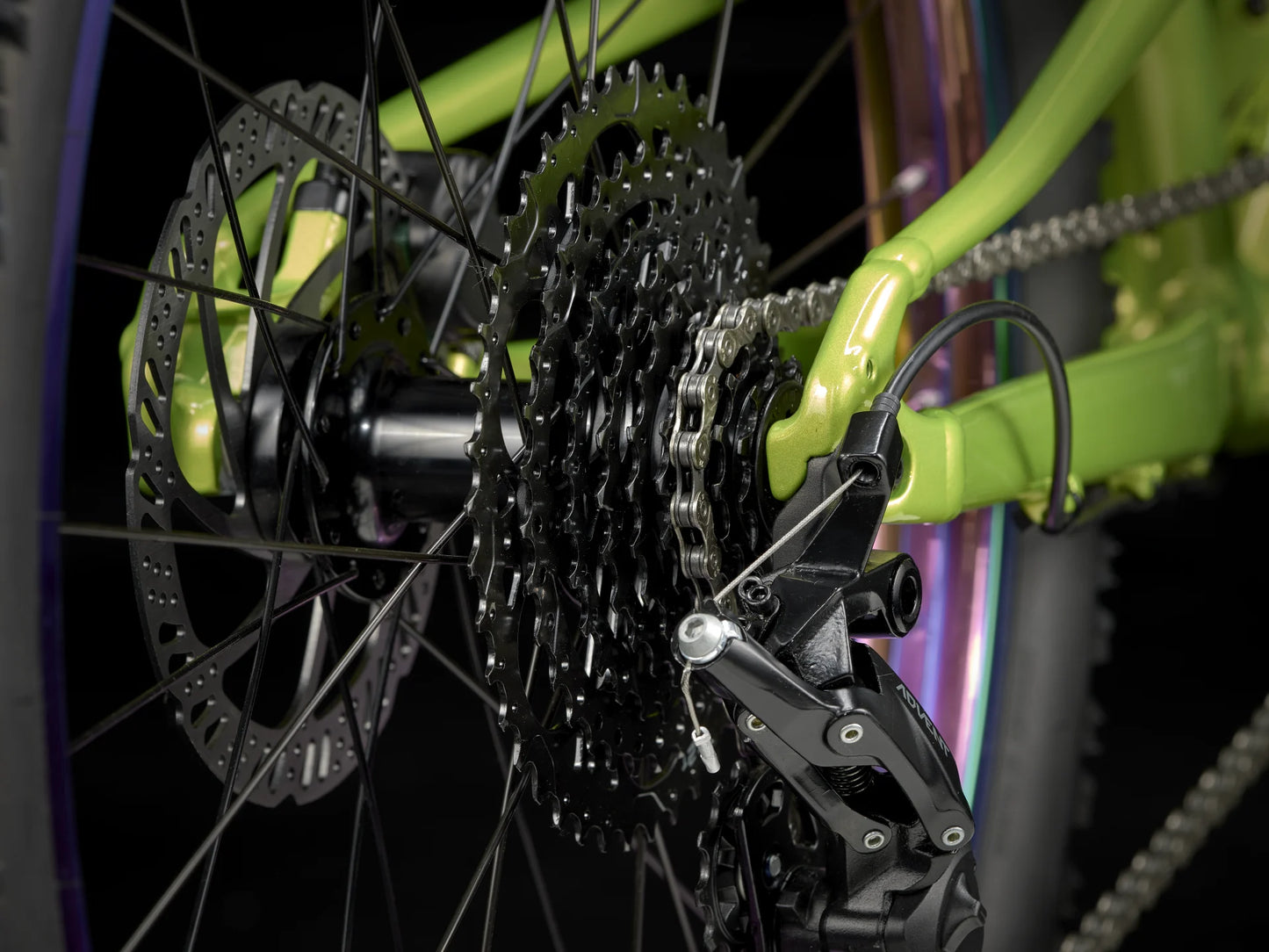

• Rear Cassette: microSHIFT Advent H093, 11-42, 9-speed
• Chain: KMC X9
• Front Derailleur: N/A
• Rear Derailleur: microSHIFT Advent RD-M6195M, 40-46T max cog
• Bottom Bracket: Sealed cartridge, 68 mm
• Pedals: VP-225 pedals, 9/16'', black
• Rims: Alloy 24", 28 h
• Front Hub: Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew
• Rear Hub: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
• Tyres: Kenda Amrak, 30 tpi, 24x2.20"

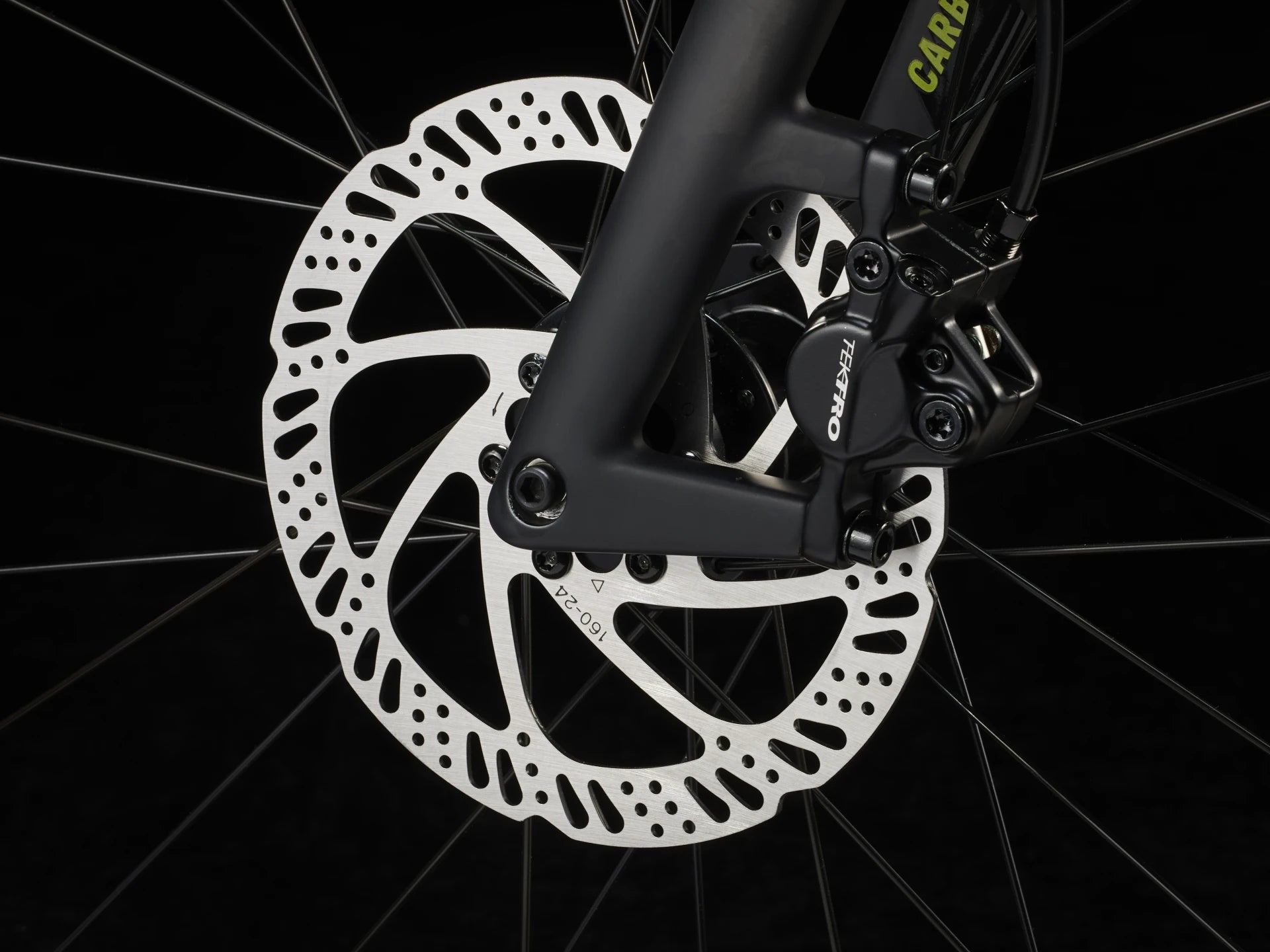

• Brakes: Tektro HD-J285 hydraulic disc, short reach

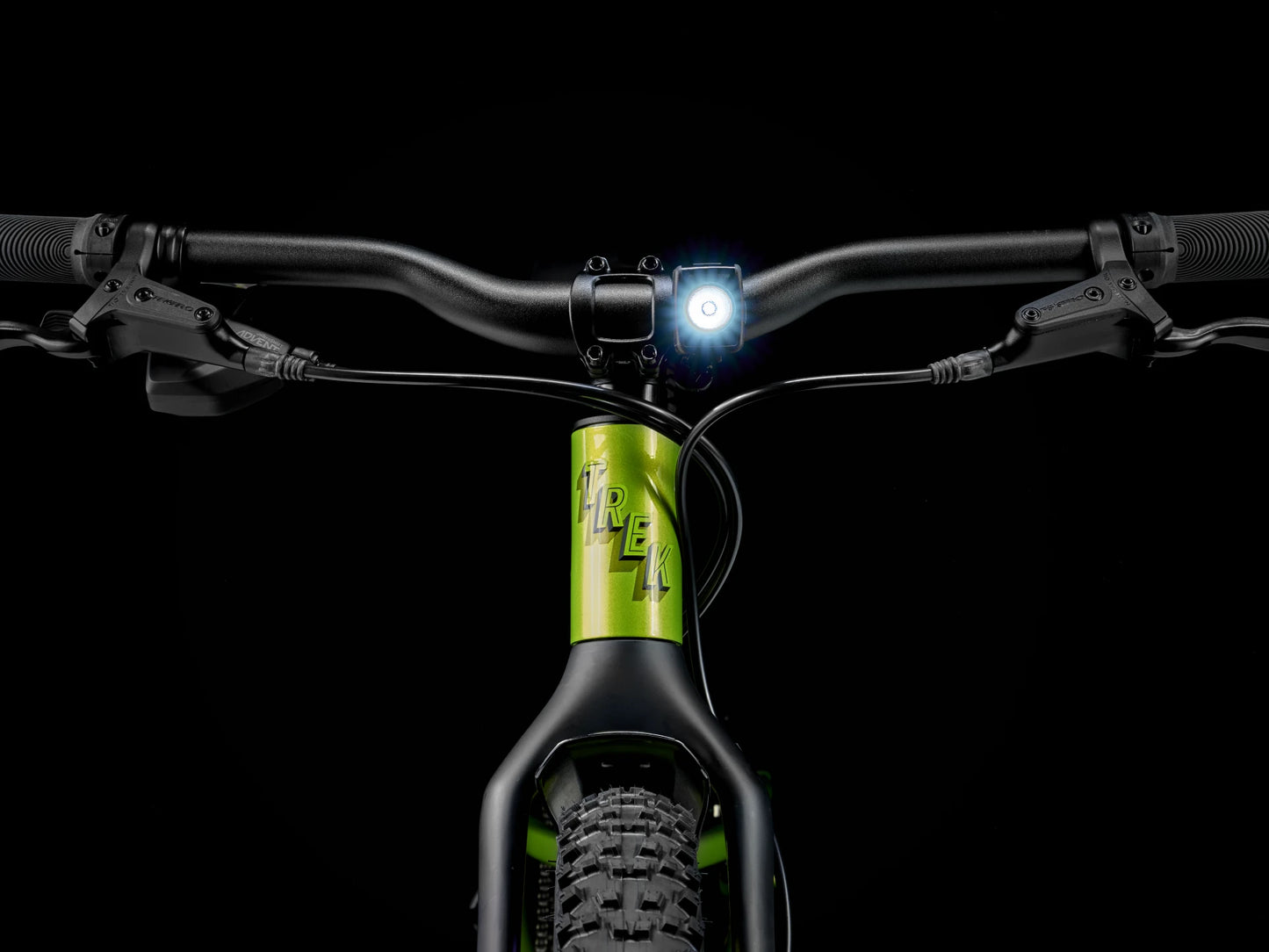

• Handlebars: Bontrager alloy, 31.8 mm clamp, 20 mm rise, 600 mm width
• Grips: Kids' grip, 110 mm width
• Headset: Integrated, sealed cartridge bearings
• Stem: Bontrager alloy, 31.8 mm clamp, 6-degree, 45 mm length

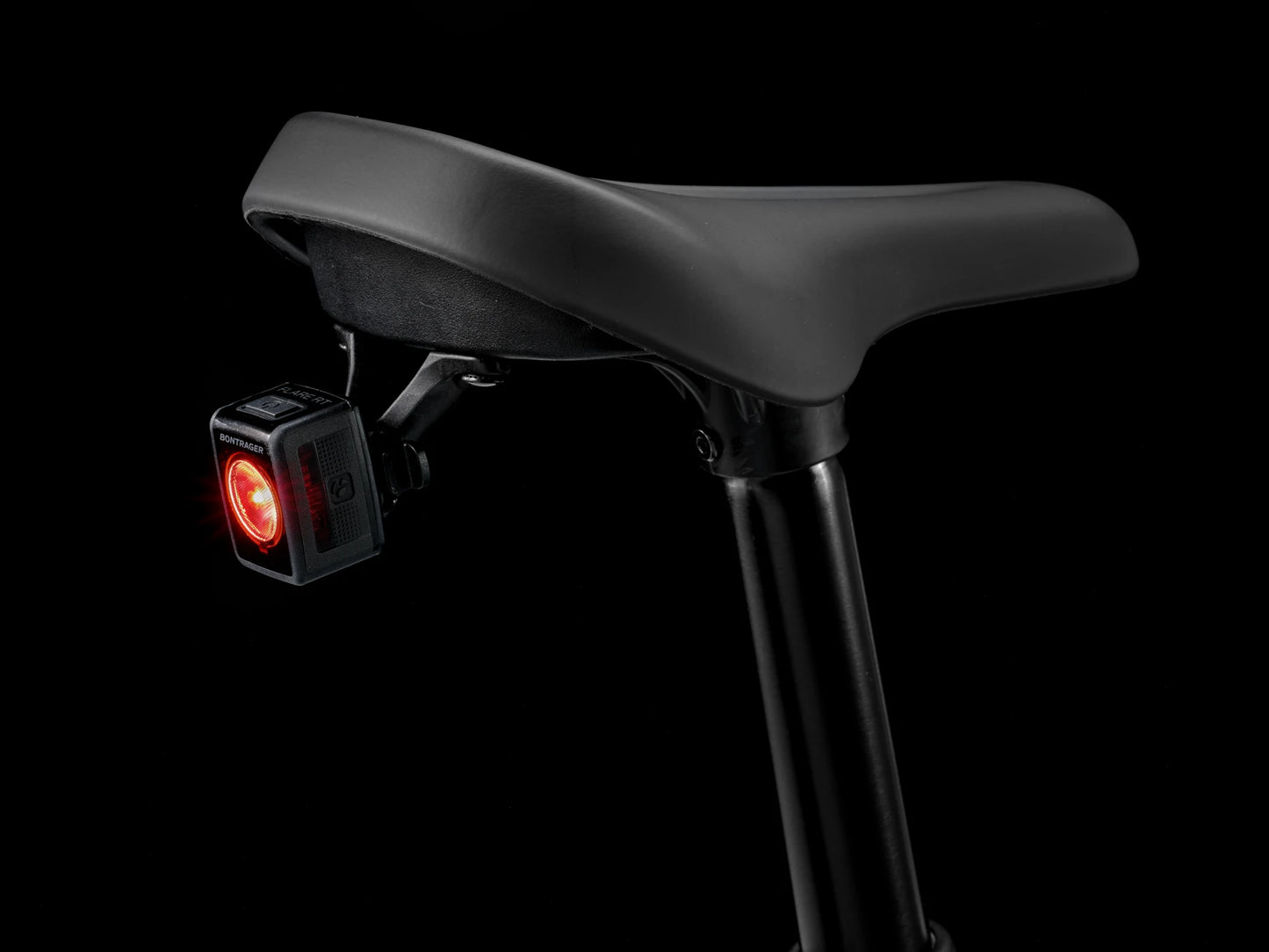

• Saddle: Kids' padded, integrated seat post, Blendr light mount, 31.6x270 mm
• Seatpost: Alloy, 27.2 mm

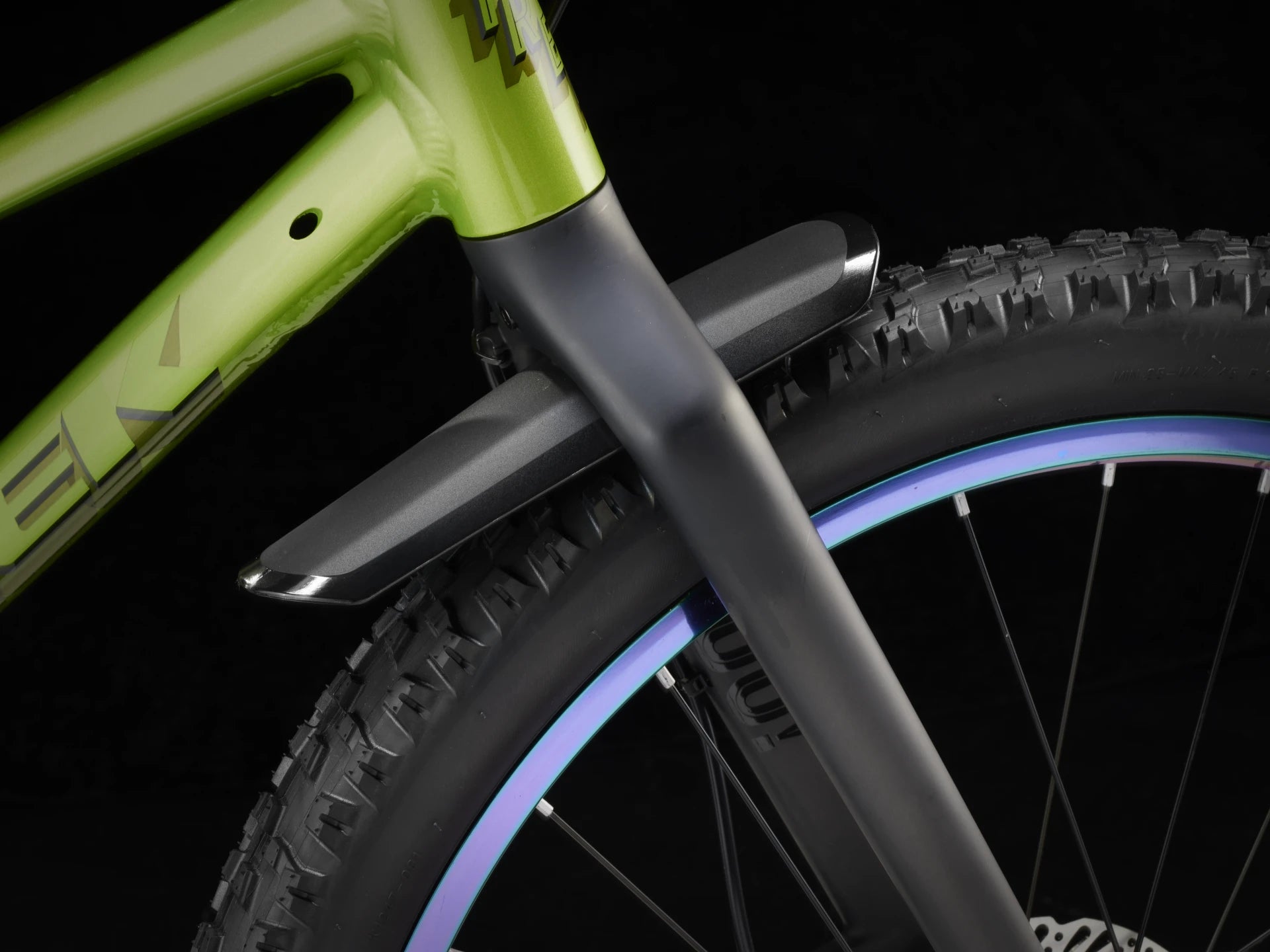

• Accessories: Trek custom mudguard
• Weight: 10.70 kg / 23.59 lbs
• Inside Leg or Age Range: 8-12

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
