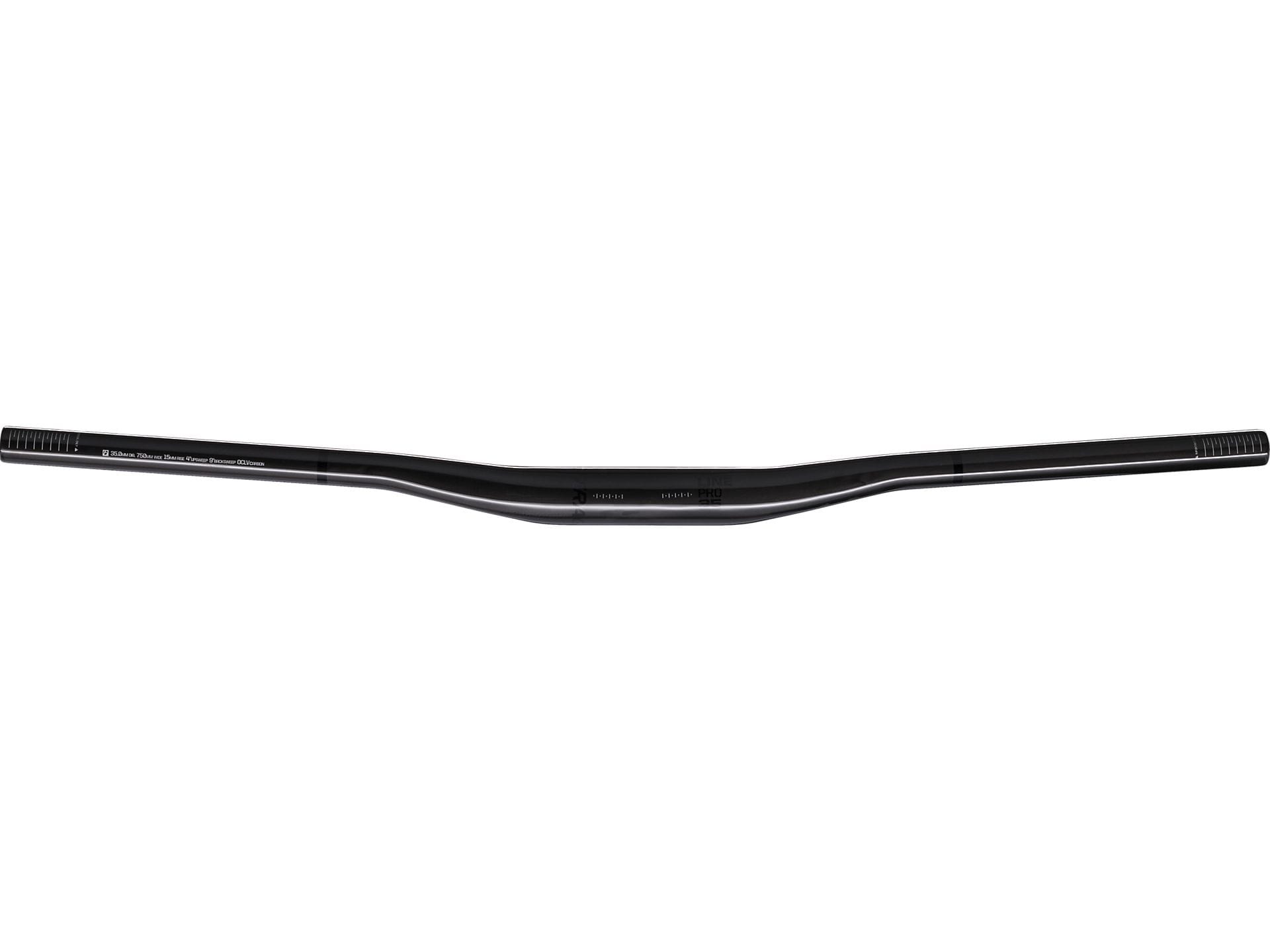

The Line Pro Carbon MTB Handlebar adds strength and saves weight. This trail-tough bar has an oversized 35 mm diameter, and it's built with OCLV Carbon so it's strong enough for even the most demanding trails and compliant enough for comfort on long descents and rugged terrain.
Features
- A pro-level quality handlebar in oversized 35 mm clamp diameter offers increased strength and minimal weight
- 15mm and 27.5mm rise options to dial in the perfect hand position
- Brake and shifter lever position lines for spot-on control set-up
- 40 mm of cut marks on each side for easy width customisation
- OCLV Carbon construction is the benchmark for durability and light weight
Specifications
Size | 750mm x 15mm | 750mm x 27.5mm | 820mm x 27.5mm |
---|---|---|---|
Width | 750 mm | 750 mm | 820 mm |
Rise | 15 mm | 27.5 mm | 27.5 mm |
Clamp | 35 mm | 35 mm | 35 mm |
Backsweep | 9 deg. | 9 deg. | 9 deg. |
Upsweep | 4 deg. | 4 deg. | 4 deg. |
Cable routing | External | External | External |
Material | Carbon | Carbon | Carbon |
Weight | 207g | 227g | 248g |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
