Product Details
Product Details
Goodbye, chatter
Ready to ditch the wrist fatigue that accompanies rough road rides? IsoZone foam pads are integrated directly into the tops of the alloy Elite IsoZone bar for a 20% displacement in vibration. This alloy bar features a Variable Radius Shallow Flare (VR-SF) design for a shorter reach and extra confidence.
Features
- Custom-butted, 6066-T6 alloy construction
- Confidently access brake levers while in the drops with the shorter reach and Variable Radius Shallow Flare (VR-SF) design
- Compatible with Shimano EW-RS910 bar end Junction-A for cleaner Di2 routing
- Compatible with clip-on aero bars
- Shot-peened finish increases fatigue life

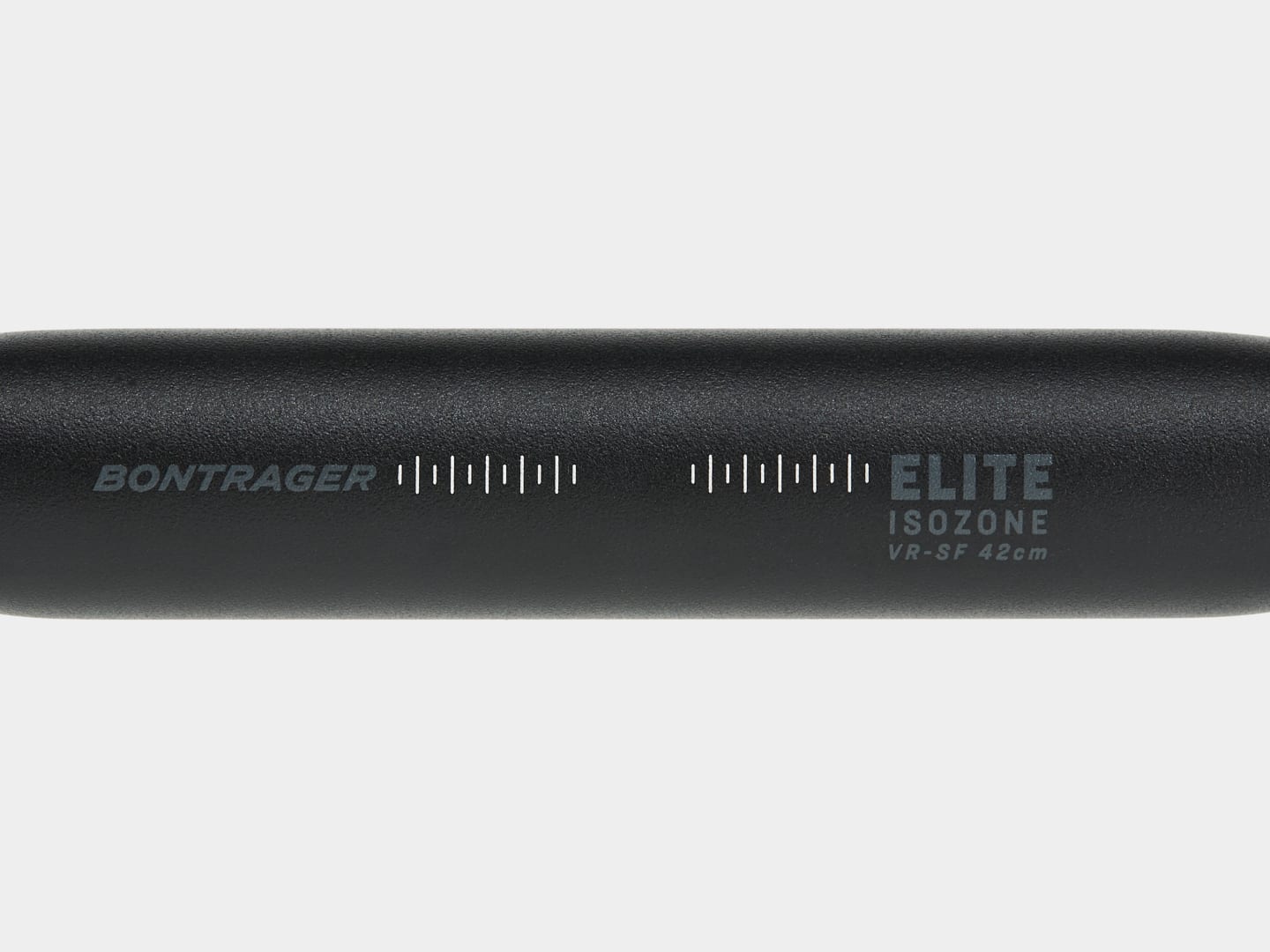

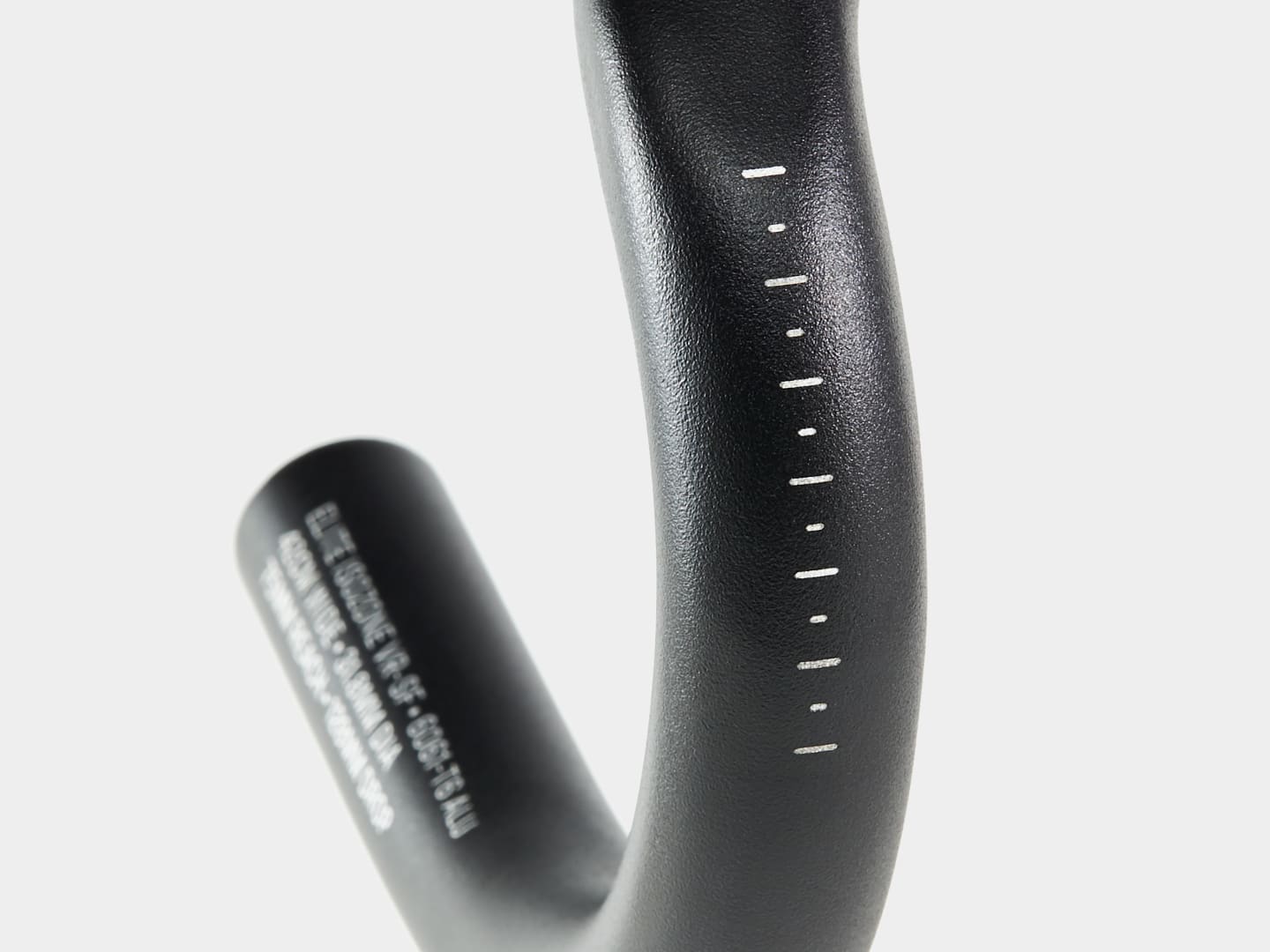

- Laser-etched brake lever position lines for spot-on control set-up
Specification
Size | 360/380mm | 380/400mm | 400/420mm | 420/440mm | 440/460mm |
---|---|---|---|---|---|
Hood width | 360 mm | 380 mm | 400 mm | 420 mm | 440 mm |
Drop width | 380 mm | 400 mm | 420 mm | 440 mm | 460 mm |
Clamp | 31.8 mm | 31.8 mm | 31.8 mm | 31.8 mm | 31.8 mm |
Bend | VR-SF | VR-SF | VR-SF | VR-SF | VR-SF |
Drop | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm |
Drop flare | 4 deg. | 4 deg. | 4 deg. | 4 deg. | 4 deg. |
Reach | 75mm | 75mm | 75mm | 75mm | 75mm |
Cable routing | External | External | External | External | External |
Material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
Weight | 298g | 308g | 315g | 323g | 330g |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
