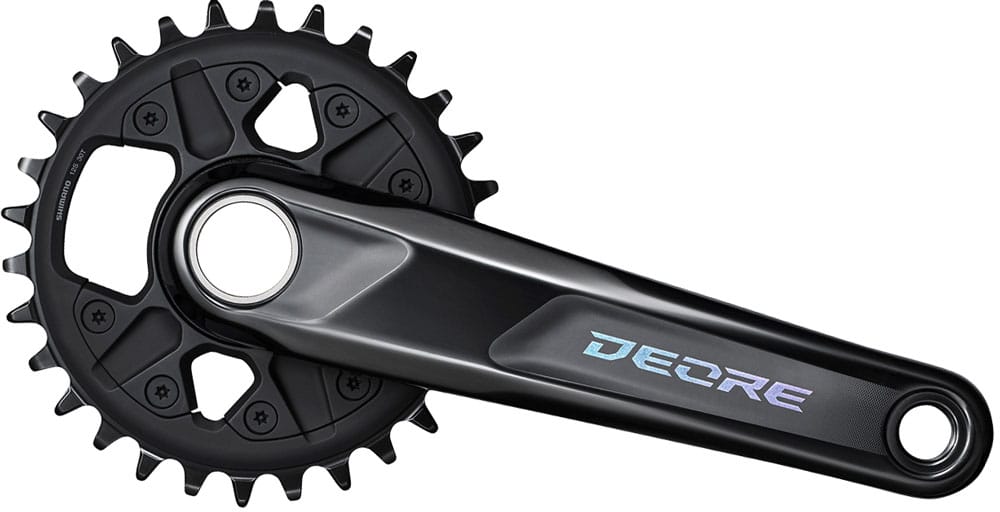

The Shimano DEORE FC-M6100 1 x 12-speed crank with 172 mm Q-factor, 52 mm chainline and 142 / 148 mm O.L.D stands for highest drive efficiency. It offers optimum power transmission and maximum speed for the new DEORE system, which only use 1 chainring.
Moulded from the same DNA as XTR, DEORE XT and SLX, the new M6100 series delivers Shimano’s proven 12-speed technologies at DEORE level.
Features
-
FC-M6100-1 Q-Factor 172mm
-
Chain line 52mm
-
O.L.D 142mm / 148mm (Boost)
-
Compatibility 1x12-speed with CS-M6100 cassette 10-51
-
Mounting system Direct mount (Lighter and stiffer design & easy exchangeable chainring by direct mount and one key release)
Specification
-
Use: MTB
-
Group: DEORE M6100
-
Model: FC-M6100-1
-
Gradation: 32T
-
Q-Factor: 172mm
-
Threaded BB shell width: 68 / 73mm
-
Gear rear: 12-speed
-
Construction: 2-Piece
-
Compatible Chain: CN-M6100 12-speed
-
Crank arms: 4 arm
-
O.L.D: 142mm / 148mm (Boost)
-
Chain line: 52mm
Crank Arm Length
Material
-
Crank arm: Aluminium Anodized
-
Crank axle: Steel Plated
Contents
- 1 x Shimano DEORE FC-M6100-1 12-speed Crank 32
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
