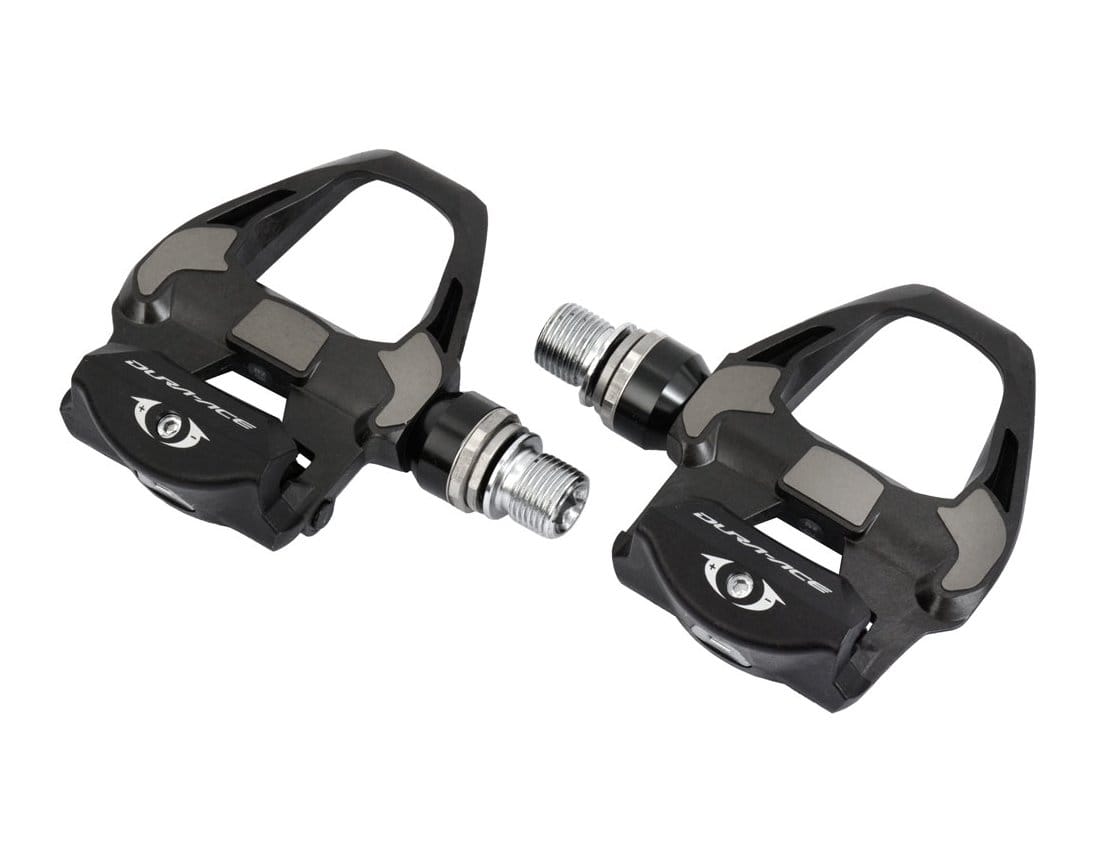

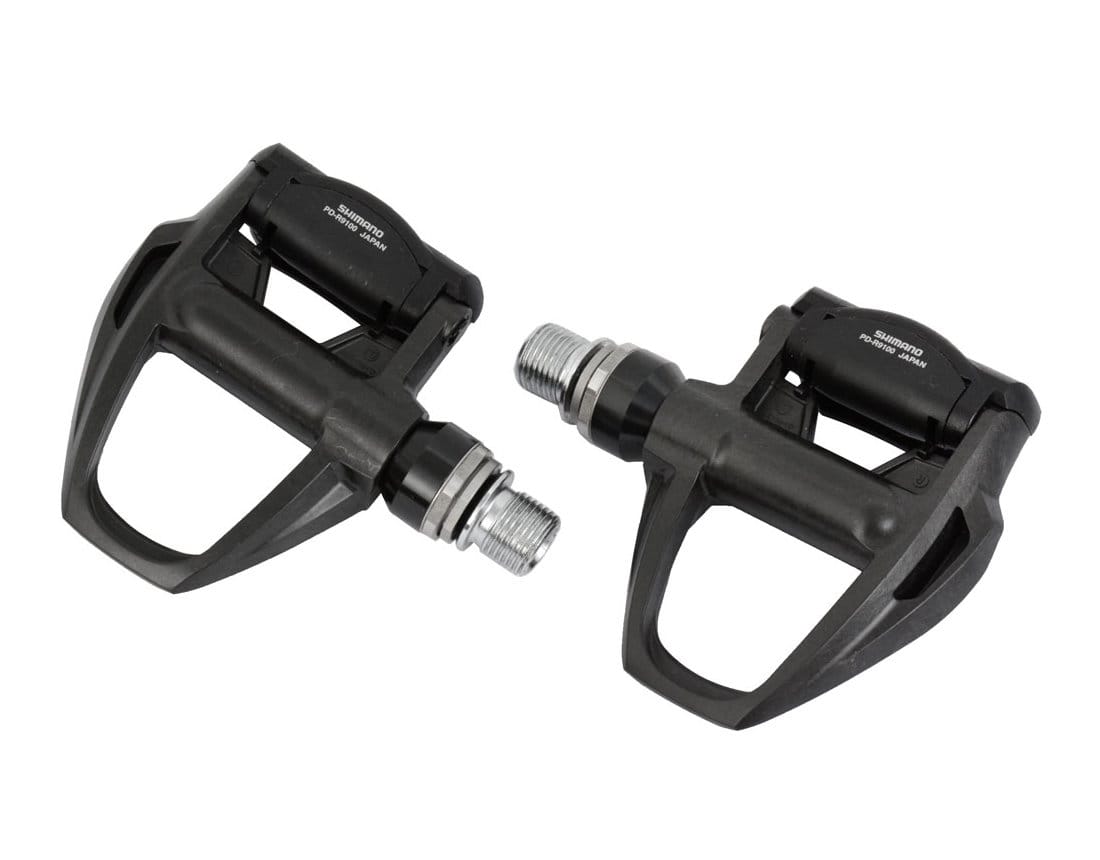

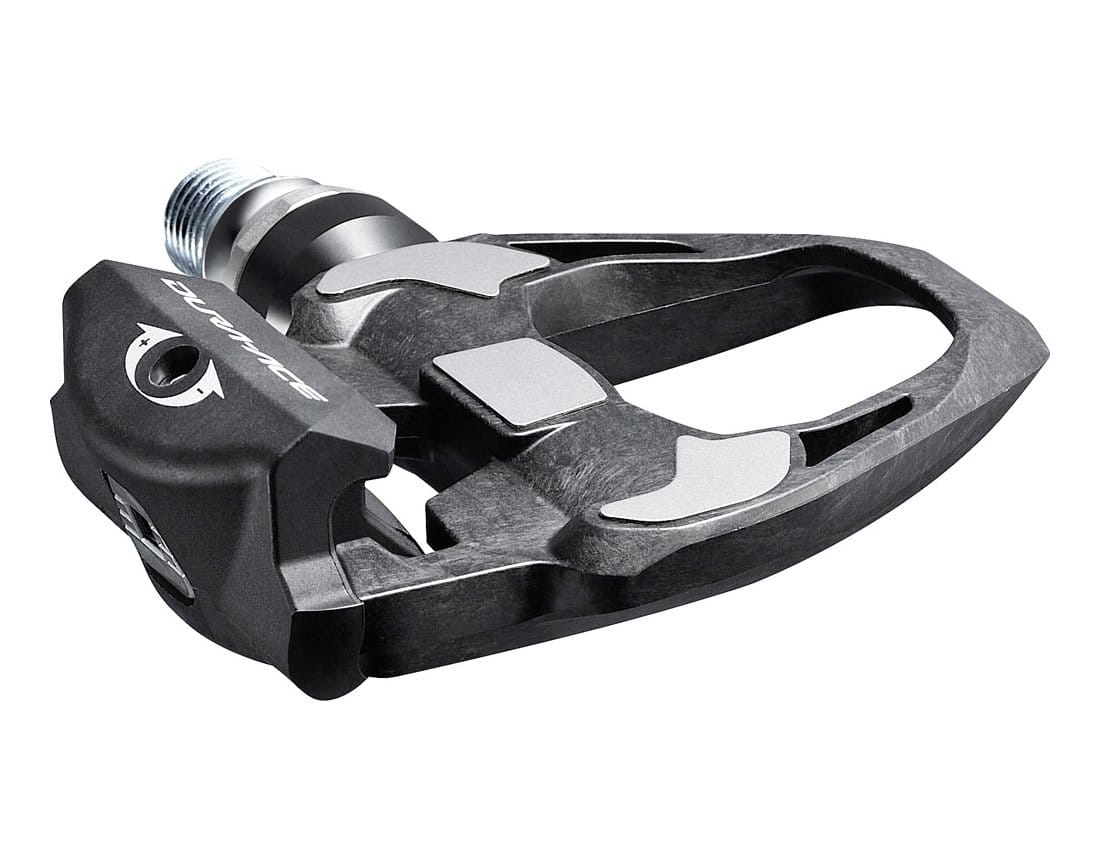

Top road bike pedals with extended axle from Shimano.

The Shimano SPD-SL click pedals PD-R9100 of the top road bike group Dura Ace have a 4mm longer axle. The pedal body is made of carbon, which is why both pedals together weigh only 234 g. The wide platform ensures optimum power transmission and optimum connection to the shoe.

SHIMANO’s extended axle adds 4mm to the distance between the crank and the foot position. This allows riders with naturally wider hips to maintain correct leg and foot alignment on the pedals. With the introduction of DURA-ACE R9100, Shimano has reestablished the new benchmark for road performance by improving each component and incorporating its newest digital technologies. DURA-ACE R9100 delivers unparalleled performance, highly-refined ergonomics and immense customization to maximize every rider’s potential.

Specifications

• Super lightweight carbon SPD-SL road pedal for high performance road racing
• Lightweight carbon body provides large shoe contact area to maximise power transfer and support whilst reducing weight
• The wide flat profile gives better road clearance and cornering, also allowing wider bearing placement for increased rigidity and uniform load distribution
• Low profile 8.8 mm body height from axle centre to cleat contact surface
• Silky smooth 3-bearing axle system, two ball- and one wide roller-bearing
• Extended axle adds 4mm to the distance between the crank and the foot position allowing riders with naturally wider hips to maintain correct leg and foot alignment on the pedals
• Stainless steel pedal body plate for increased durability
• Open design allows for easy access and cleat adjustments
• Wider shoe cleat has a long life and is easier for walking than other cleats
• Large binding target allows quick engagement while wide cleats provides more efficient pedalling
• Three types of shoe cleats available: fixed, 3 degrees of float in each direction, or 3 degrees of float from a front-centre pivot

• Excellent pedaling efficiency
• Injection molded carbon composite body
• Efficient power transfer
• Extra-wide platform
• Reduces flex and pedal body wear
• Excellent pedaling efficiency
• 2-ball bearing, 1-wide roller bushing
• Stainless steel top plate
• 4mm longer axle

• Use: Road
• Series: Dura Ace
• Model: PD-R9100 4mm
• SPD-SL: single
• Sealed mechanism: Yes
• Release tension adjustable: Yes
• Release angle: 35°
• Cleats: SM-SH12
• Optional cleats: SM-SH10 / SM-SH11 (Not included!)
• Optional reflector: SM-PD63 (Not included!)

• Pedal body: Carbon
• Pedal axle: Chromoly steel nickel

• 243g (pair)
