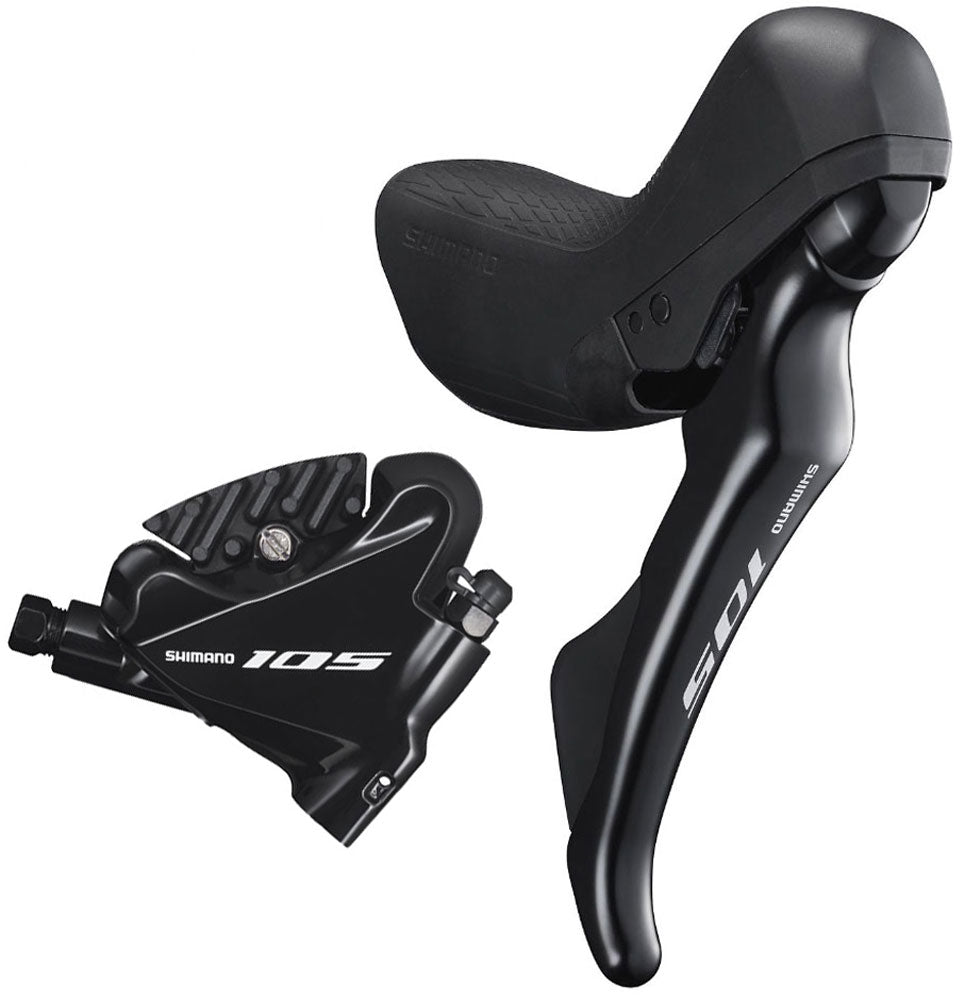

With smaller, sleeker hoods, the Shimano 105 2x11-speed compatible ST-R7020 STI with BR-R7070 caliper for hydraulic disc brake units deliver improved ergonomics for better rider comfort and control, with reduced lever stroke and lighter action.
For both STI types - for rim brakes (ST-R7000) and disc brakes (ST-R7020/7025) - the shift mechanism has also been revised to ensure faster and smoother gear changes with shorter lever travel.
Although the new SHIMANO 105 looks the same as its big siblings DURA-ACE and ULTEGRA in the same high quality sporty outfit, the developers for the R7000 group also considered that 105 users usually use their racing bike for much more than just racing or training. The SHIMANO 105 has always marked the entry into the field of high-quality, race-inspired component groups. With the new 105, this definition is now much broader and includes the high degree of user-friendliness and customizability required for a wide range of applications.
Features
- Greater reach adjust range
- Redesigned internal shifting unit
- Greater rider control in all conditions
- Quick and intuitive rear shifting operation
- Same light shifting operation as top tier systems
- Great ergonomics cascaded from ULTEGRA
- Lighter front shifting when paired with FD-R7000 (compared with previous generation)
- Fast and easy bleeding through one-way Bleeding
- Rear (140mm)
Specification
- Use: Road/Cyclocross
- Group: 105
- Model: ST-R7020
- Type: Dual-Control (STI)
- Handlebar mounting: right
- Gear rear: 11-speed
- Optical gear display: No
- Lever reach adjust: Yes
- Handlebar diameter: 23.8mm/24.2mm
- Brake-type: Hydraulic Disc Brake
- Brake caliper: BR-R7070
- Brake mounting: Flat-Mount
- Brake pads: L02A Resin with Fin
- Brake hose: SM-BH90-JK-SSR rear 1700mm (shortable)
- One-Way bleeding: Yes
- Brake fluid: Mineral oil
- Recommended brake rotor: SM-RT70 (140mm)
Compatible Pads Brake Pads
- K02S Resin
- K03S Resin
- K04S Metal
- L02A Resin
- L04A Resin
- L04S Metal
Material
- Body: CFRP
- Lever: Aluminium, painted
- Caliper: Aluminium, painted
Weight
- Approx 485g (without rotors)

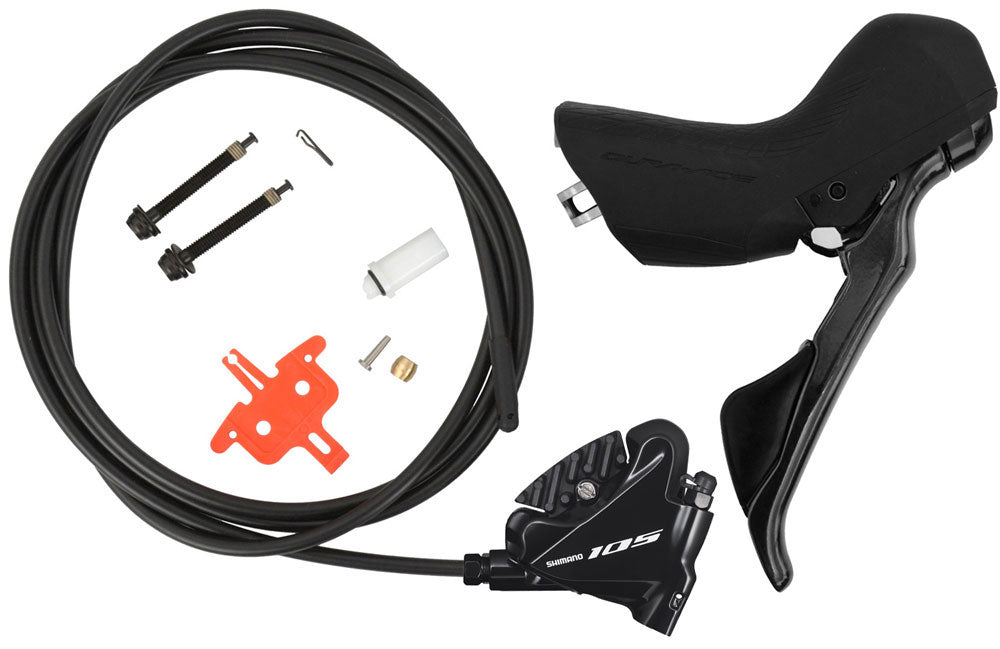

Contents
- 1 105 11-speed STI Dual Control ST-R7020 right
- 1 105 Disc Brake Caliper BR-R7070 Flat-Mount
- 1 Brake Pads L02A-Resin with Fin
- 1 Brake Hoses SM-BH90-JK-SSR 1700mm (shortable)
- 2 Screws for brake caliper (38mm)
- 1 Tube Joint Kit (Insertpin + Olive)

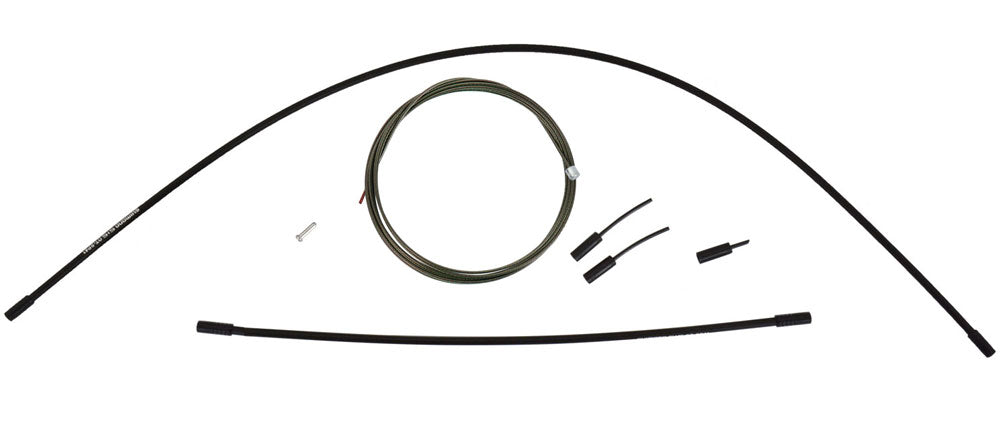

- 1 Gear wire (Optislick) 2100mm
- 1 Gear cable SIS OT-SP41 600mm
- 1 Gear cable SIS OT-SP41 300mm
- End caps
- The brake hose SM-BH90-JK-SSR is with mineral oil filled and pre-mounted on the caliper BR-R7070!
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
