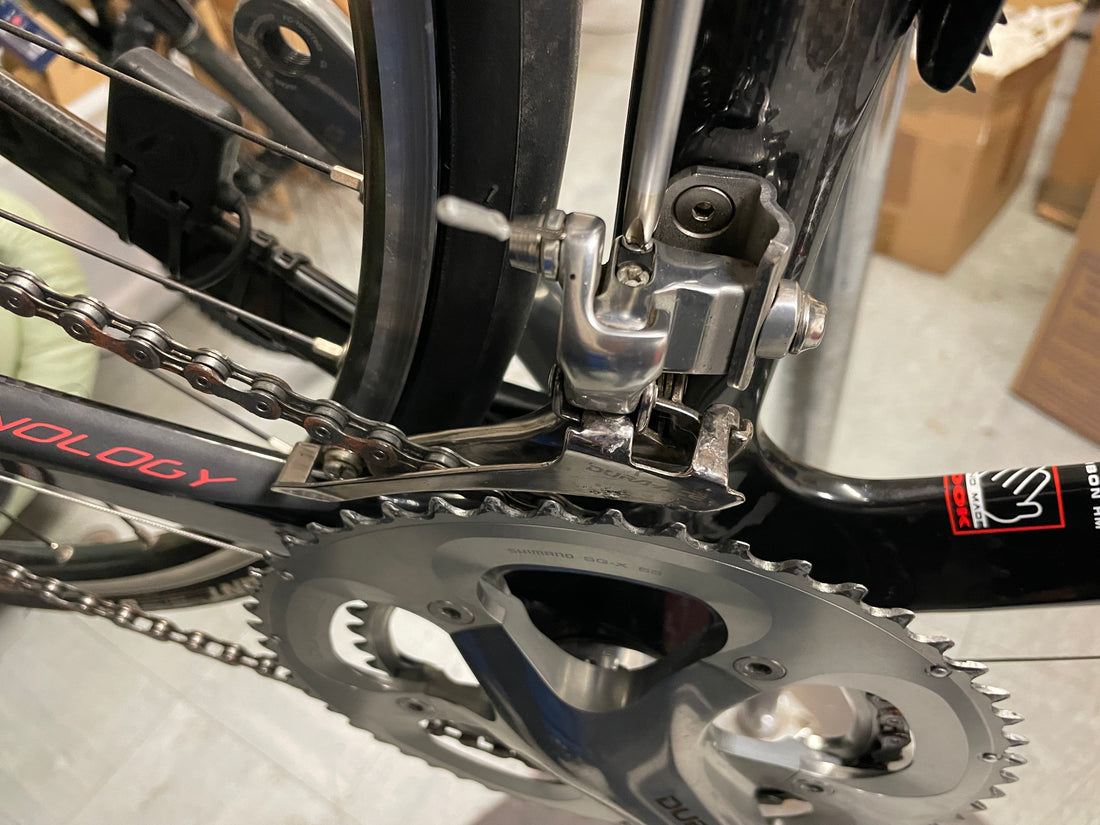

Setting up a bicycle front derailleur can be a bit tricky, but with patience and attention to detail, you can get it working smoothly. Here's a step-by-step guide to help you set up your front derailleur:
Tools You'll Need:
- Allen wrenches (usually 4mm and 5mm)
- Screwdriver
- Cable cutter or cable housing cutter
- Pliers
- Phillips head screwdriver
Step 1: Position the Chain on the Small Chainring:
- Shift your rear derailleur into the smallest cog (highest gear).
- Make sure your front shifter is also in its lowest (small chainring) position.
Step 2: Set the Low Limit Screw:
- Locate the low limit screw on the front derailleur. It's usually labelled "L."
- Adjust the low limit screw until the inside edge of the derailleur cage is about 1-2mm above the teeth of the small chainring.
- Shift to the small chainring to ensure it moves smoothly without rubbing on the derailleur cage.
Step 3: Attach the Cable:
- Thread the derailleur cable through the cable clamp on the front derailleur.
- Pull the cable tight and secure it with a cable pinch bolt using a 5mm Allen wrench. Make sure the cable is taut but not overly tight.
Step 4: Set the High Limit Screw:
- Locate the high limit screw on the front derailleur, typically labelled "H."
- Shift to the large chainring.
- Adjust the high limit screw until the inside edge of the derailleur cage is about 1-2mm above the teeth of the large chainring.
- Shift to the large chainring to ensure it moves smoothly without rubbing on the derailleur cage.
Step 5: Check for Proper Shifting:
- Shift between the small and large chainrings using the front shifter. The chain should move smoothly between the chainrings without dropping.
- If the chain doesn't shift properly, fine-tune the cable tension using the barrel adjuster on the front derailleur or shifter.
- If necessary, make small adjustments to the cable tension until the shifting is smooth and accurate.
Step 6: Fine-Tune the Front Shifting:
- Take a test ride and shift through all the gears, both front and rear.
- If the chain still rubs on the front derailleur cage when in certain gear combinations, adjust the trim settings on your front shifter (if available) to slightly move the derailleur left or right without fully shifting to the other chainring.
Step 7: Check for Chain Rub and Noise:
- Pay attention to any chain rub or noise when in extreme gear combinations (big chainring/big rear cog or small chainring/small rear cog). Make small adjustments to the trim settings or cable tension to minimize rub and noise.
Step 8: Double-Check Everything:
- After a test ride and fine-tuning, double-check all the screws and cable tension. Make sure everything is secure.
Remember that setting up a front derailleur can be a bit trial-and-error, so don't be discouraged if it takes a few attempts to get it just right. Patience and attention to detail are key to achieving smooth front shifting on your bicycle.
